加拿大BW新款四合一气体检测仪MCXL-4的新价格报价和详细的参数规格资料,正品行货型号：MCXL-XWHM-Y-CN,正面标识为GasAlert MicroClipXL。GasAlertMicroClip特点: 针对标准操作和长工作时间操作,分别有 GasAlertMicroClipXT 和 GasAlertMicroClipXL，对两者区别进行详细比较。
加拿大原装正品MC2-4生产线转为中国之后，加拿大原装生产在升级电池后，型号改为MCXL-4，BW气体检测仪两款整体外观一致，使用功能一致，在保持MC2-4氧气使用年限优点继续保持外，GasAlertMicroClipXL电池使用时间也从8个小时升级为15个小时，更复合紧急救援使用。

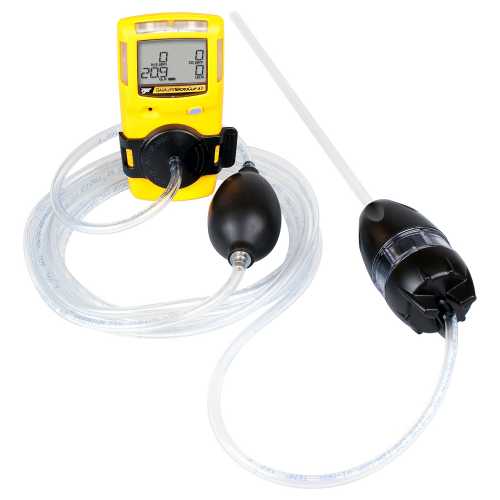

如图配置为扩散式MCXL-4探枪和手泵的结合，也可选择BW泵吸式四合一气体检测仪
GasAlertMicroClip XL可提供经济划算的有毒气体防护。轻薄小巧型设计使其易于携带，并且可使工作人员专注于手头工作，不受负重影响。
2015加拿大BW新款四合一气体检测仪,MCXL-4四合一气体检测仪特征:
1.LCD实时显示气体浓度的连续。
2.小巧轻便的设计使得它穿着舒适。
3.MCXL-4具备防水。
4.BW气体检测仪简单的自动校准程序。
5.兼容BW microdock II自动测试和校准站。
6.全功能自检的传感器，电池状态，电路的完整性和听觉/视觉警报启动。
7.MCXL-4具备18小时的电池寿命。
8.明亮的宽角度的视觉报警。
9.防篡改数据，一个按钮操作。
10.兼容采样器机动远程采样泵。
11.BW气体检测仪配备高噪声区域内振动报警。
BW2016新款四合一气体检测仪MCXL-4特点与优点:
1.MCXL-4令人难以置信的纤巧，佩戴感觉舒适。
2.简单的单按钮操作满足多种气体的多面性。
3.从视觉上保持与 IntelliFlash 的符合性。
4.MCXL-4异常低的拥有成本。
Self-test: Initiated upon activation Calibration: Automatic zero and automatic span Oxygen sensor: Automatic span upon activation (enable/disable)
User field options: Startup message, Confidence Beep, latching alarms, enable/disable safe display mode, oxygen measurement, combustible sensor measurement, sensor disable, define calibration interval, force calibration, calibration lock, force bump, define bump interval, bump due lock, stealth mode, low alarm acknowledge, language selection, enable/disable automatic oxygen calibration, enable/disable auto zero at startup, define alarm setpoints, span concentration values, define STEL calculation period, IntelliFlash, and Confidence Beep and IntelliFlash Interval.
Detectors that are configured for 1, 2, or 3 gases may contain a dummy sensor in one of the four sensor locations.
1. Gently remove the circular rigidified flex PCB atop the sensor from the metal sensor posts. Take care not to tear the flex cable.
2. Note the placement of the PCB to ensure it is replaced correctly. Remove the two screws on the PCB.
3. Lift the PCB straight up. The oxygen sensor will stay in the front shell. Remove the sensor.
4. On roughly the same spot on the front shell, place the new sensor. Lower the PCB over the oxygen sensor.
5. Carefully replace the circular rigidified flex PCB atop the metal sensor posts. Ensure the plastic sensor post is inserted into the clear plastic hole. Take care not to tear the flex cable.
6. Press down to secure the circular rigidified flex PCB atop the metal sensor posts.Take care not to press down too hard and accidentally activate the detector.
7. To complete the detector.
BW气体检测仪性能参数：
1.MCXL-4尺寸：4.4 x 2.4 x 1.1 英寸/ 11.3 x 6.0 x 2.9 厘米
2.重量：6 盎司/ 170 克
3.温度：-4 至 + 122°F / -20 至 +50°C
4.工作湿度：0-95% 相对湿度（非冷凝）
2015加拿大BW新款四合一气体检测仪,MCXL-4四合一气体检测仪传感器:
1.H2S; 0 to 100 ppm (1 ppm
2.CO; 0 to 500 ppm (1 ppm)
3.O2; 0 to 30% (0.1%)
4.可燃气体;
0 to 100% LEL (1%)
0 to 5.0% v/v (0.1%
Detection range:
H2S: 0 – 100 ppm (1 / 0.1 ppm increments)
CO: 0 – 500 ppm (1 ppm increments)
O2: 0 – 30.0% vol. (0.1% vol. increments)
Combustible (LEL): 0% to 100% LEL (1% LEL increments) or 0.0% to 5.0% v/v methane Alarm conditions: TWA alarm, STEL alarm, low alarm, high alarm,
multi-gas alarm, over limit (OL) alarm, low battery alarm, confidence beep, automatic deactivation alarm
Audible alarm: 95 dB at 30 cm (1 ft.) (100 dB typical) variable pulsed beeper
Visual alarm: Red light-emitting diodes (LED)
Display: Alphanumeric liquid crystal display (LCD)
Backlight: Activates when the pushbutton is pressed and deactivates after 5 seconds; also activates during an alarm condition)
BW气体检测仪GasAlertMicroClip XT XL X3产品结构：
BW四合一气体检测仪三者区别：
MC2-4:11.25 x 6.00 x 2.89 cm (4.4 x 2.4 x 1.1 in.)
MCXL-4,MCX3-4:11.25 x 6.00 x 3.22 cm (4.4 x 2.4 x 1.2 in.)
加拿大BW气体检测仪重量：
MC2-4重量170 g (6.0 oz.)
MCXL-4:190 g (6.7 oz.)
MCX3-4:179 g (6.3 oz.)
BW气体检测仪使用环境：
MC2-4，MCXL-4使用环境：-4°F to +122°F (-20°C to +50°C)
MCX3-4使用环境：-40°F to +122°F (-40°C to +50°C)更能耐低温。
Instrument dimensions:
XT: 11.25 x 6.00 x 2.89 cm (4.4 x 2.4 x 1.1 in.)
XL-X3: 11.25 x 6.00 x 3.22 cm (4.4 x 2.4 x 1.2 in.)
Weight:
XT: 170 g (6.0 oz.)
XL: 190 g (6.7 oz.)
X3: 179 g (6.3 oz.)
Operating temperature: -4°F to +122°F (-20°C to +50°C)
Storage temperature: -40°F to +122°F (-40°C to +50°C)
Operating humidity: 0% to 95% relative humidity (non-condensing)
Alarm setpoints: May vary by region and are user defined. All setpoints
automatically display during the startup self-test
"
